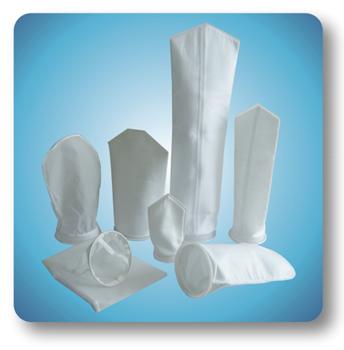

Filter Bag

The convenience and economy of liquid bag filtration is now feasible for filtration applications that previously required other, more expensive systems.

Because demanding or critical applications can be complex, an Seven Seas Solution is available to perform a no-obligation analysis of your process. Learn how one of these high performance filter bags can work in your system, whether your system already exists or is in the design stage.

Description...


Bag Size

Filter Bag #1

Filter Bag #2

Filter Bag #3

Filter Bag
#4

Diameter (inch)

7

7

4

4

Length (inch)

16

32

9

16

Surface Area (ft2)

2.0

4.4

0.5

1.0

Flow Rate (GPM)

90

200

25

45

Collar Type

PP Plastic Ring (G & F Type)

PP Plastic Ring (F Type)

Micron Rating (micron)

1, 5, 10, 25, 50, 75, 100, 150, 200 300

MOC

PE (Polyester Needle felt)

Operating Temp

135oC

Acid Resisting

Normal

Alkali Resisting

Normal


Proprietary Construction Process
:-



A proprietary construction processes produce a reliable, durable filter bag.   All seams are fully welded, producing strong, reliable joints with no by-pass or loose sewing thread.  Seams are both strong and flexible, allowing the filter bag to conform to the restrainer basket.  The seam edges are heat sealed, eliminating possible loose fibers.  This results in a filter bag with durable performance for the most demanding applications.
