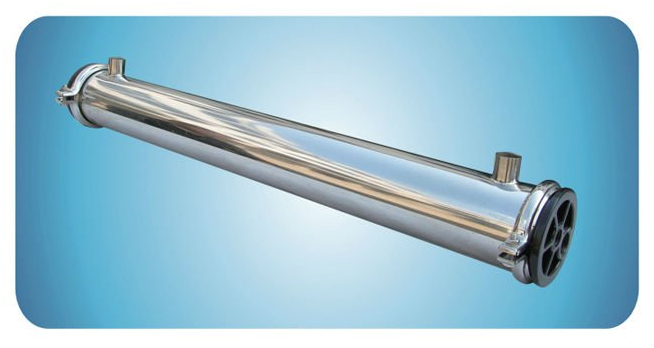

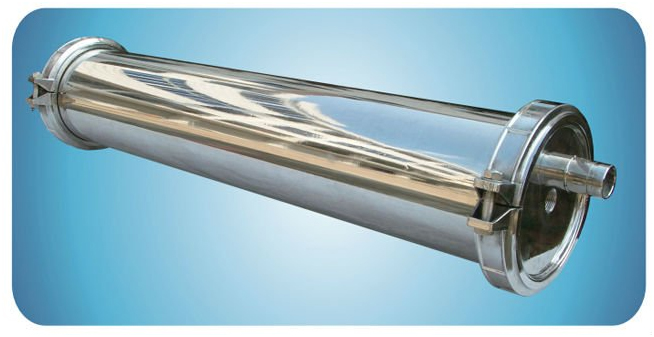

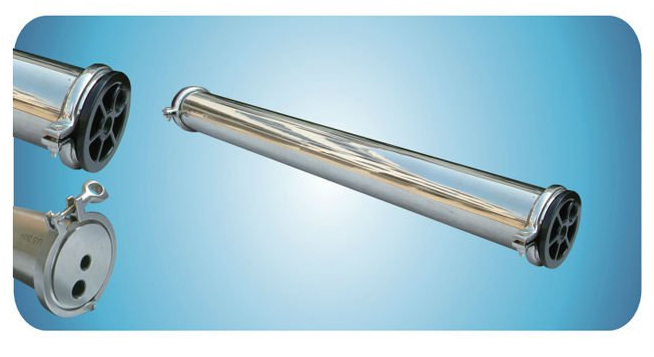

SS Membrane Housing

SS Membrane Housing...



SPECIFICATION

SSS4040E-S

SSS4040S-S

SSS4040E-S

SSS4040S-S

SSS8040S-S

SSS8040S-S

Vessel Diameter

4 inch

4 inch

4 inch

4 inch

8 inch

8 inch

Membrane Length

40 inch

40 inch

40 inch

40 inch

40 inch

40 inch

Port Design

End

Side

End

Side

Side

Side

Port Connection

Threaded

TC

Threaded

TC

Victaulic

TC

Design Pressure

150 psi

150 psi

150 psi

150 psi

300 psi

300 psi

Test Pressure

225 psi

225 psi

225 psi

225 psi

450 psi

450 psi

Operating Temperature

-7°C - 49°C

-7°C - 49°C

-7°C - 49°C

-7°C - 49°C

-7°C - 49°C

-7°C - 49°C

Operating pH Range

3-11

3-11

3-11

3-11

3-11

3-11

Cleaning pH Range

2-12

2-12

2-12

2-12

2-3

2-3

No. of Membranes

1 - 4 pcs.

1 - 4 pcs.

1 - 4 pcs.

1 - 4 pcs.

1 -7 pcs.

1 -7 pcs.

M°C - Body

SS 304

SS 304

SS 316L

SS 316L

SS 304

SS 304

M°C - Lid

ABS Plastic

SS 304

ABS Plastic

SS 316L

SS 304

SS 304

Body

Silt

Seamless

Silt

Seamless

Silt

Seamless




Membrane components...

  • Dow, GE, K°Ch, Hydranautics, Saehan, Toray, TRISEP membrane components of other standards



Quality Assurance...

  • 100% pressure vessels were tested with 1.5 times design pressure
  • 100% pressure vessels have their own numbers, we can trace them
